AgroLog TMS2500

To avoid spoilage in your grain silos and bulk storage facilities you need a high-quality and reliable temperature monitoring system. Our TMS2500 is a compact portable hand terminal with built-in memory for documented temperature monitoring which also includes a PC Software package that can give you a quick overview of temperature readings.

Easy connection – and you are in control

After installing the temperature sensor lines and related hardware you simply connect the hand terminal to the connection point and start measuring and logging the temperatures from each silo. This solution is for those of you who need an easy, automated way to track temperature statuses. You will be in control and gain knowledge of what is going on inside your silo or bulk storage facilities.

Gain deeper insight

This system also gives you detailed historical information. Temperature diagrams and tables are generated to present temperature trends which are analysed over time.

  • Safety control. You know the temperature inside of your silos and bulks 24/7

  • All temperature statistics are logged and can be displayed in the portable hand terminal or the included PC Software

  • Stored data can be recalled at any time

  • Easy connection. 2 wire cable and no configuration needed

  • Easy-to-use system. Just install and use on a daily basis



Highlights and features

  • High-load sensor lines up to 60 m long and tailored for any application for ATEX Zone 20/21/22

  • Different mounting brackets and hooks available for inside or outside assembly

  • Fibre glass probes between 2.5 and 12 m long – up to 4 sensors

  • Durable construction suitable for all climates

  • Backlit display to help read data in low light conditions



This is how easy it is to operate the system

  • Connect the portable Agrolog TMS2500 to the connection point and start measuring and logging the temperatures

  • All temperatures from each silo and each sensor will be stored in the system and are displayed in the portable hand terminal

  • Alternatively, the data can be transferred into the Agrolog PC2500 software program. Here temperature diagrams and tables are generated to enable the analysis of temperature trends over time

  • Use the logged data, temperature trend curves and tables to gain deeper insight

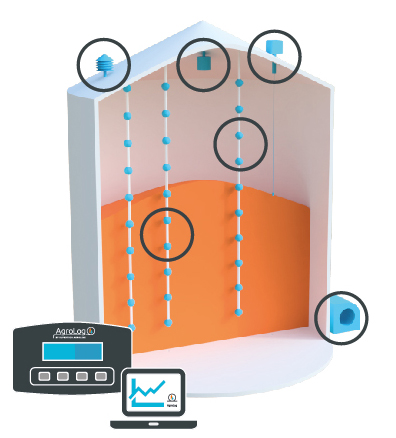

Agrolog Temperature Monitoring System – the hardware package

  • Safety barrier

  • Connection box

  • Connection cable

  • TMS2500 hand terminal

  • TMS2500 PC software

  • Temperature sensor lines

  • Suspension hook

  • Roof suspension

  • Probes spears

  • Knife connectors

  • UTP-cable

  • Blind plugs (ATEX)

  • Cable glands (ATEX and NON ATEX)

Our approvals for ISO90001 and ATEX are integrated parts of our in-house Quality Management System. Every single product goes through a 24-hour test before leaving our facilities in Denmark.



Technical specifications

  • Measuring range: -10°C to +80 °C

  • Precision: 0.5 °C

  • Display: 2-line LCD, backlit

  • Battery: 9 V alkaline

  • Sensor: 1-wire digital

  • Dimension: 148 x 88 x 25 mm

  • Weight of terminal: 0.240 kg

  • ATEX approved by TÜV
